Stope Performance & Mine Design

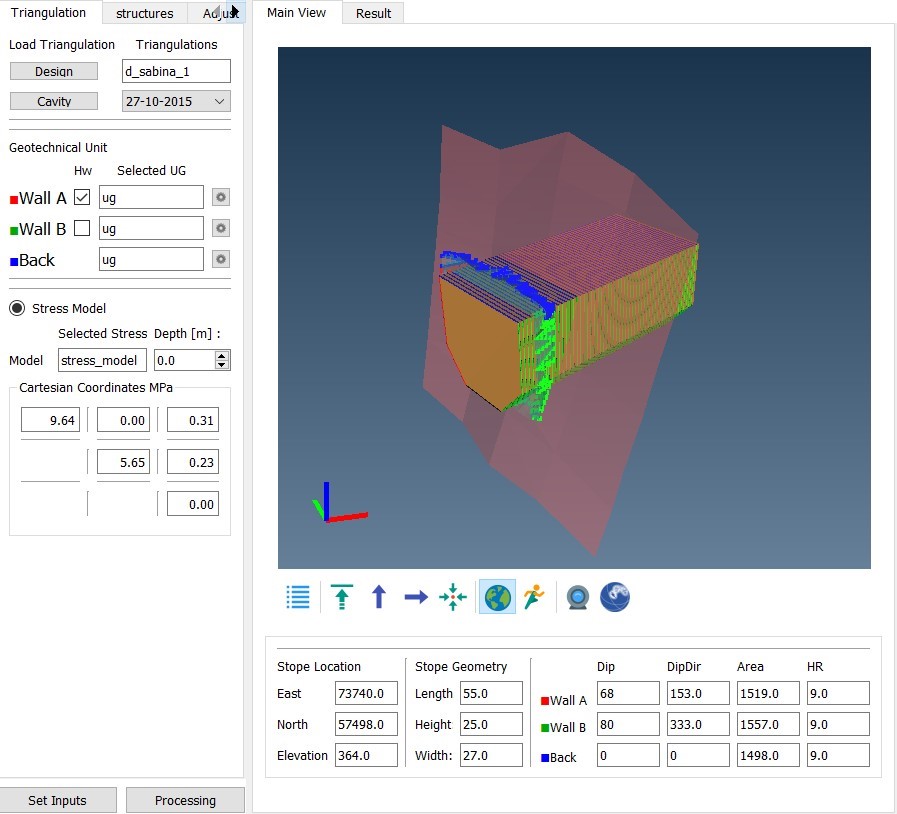

Module developed to analyze the stability of farmhouses already exploited. In it it is possible: Import design and CMS of the stopes, study the stability and over wall excavation, save the cases analyzed in databases.
Characterization of geotechnical units
Analysis Variables:
• ID wall
• Width, height and length
• Dip [°]
• Stability number N
• Factors A, B y C
• Q’
• Hydraulic Radius [m]
• ELOS [m]
• UCS 50 [MPa]
• Stope depth [m]
• Wall area [m2]
• Excavation Volume [m3]
• Over excavation area [m2]
• Excavation Volume [MPa]
• Average depth of over-excavation [m]
• Width, height and length
• Dip [°]
• Stability number N
• Factors A, B y C
• Q’
• Hydraulic Radius [m]
• ELOS [m]
• UCS 50 [MPa]
• Stope depth [m]
• Wall area [m2]
• Excavation Volume [m3]
• Over excavation area [m2]
• Excavation Volume [MPa]
• Average depth of over-excavation [m]

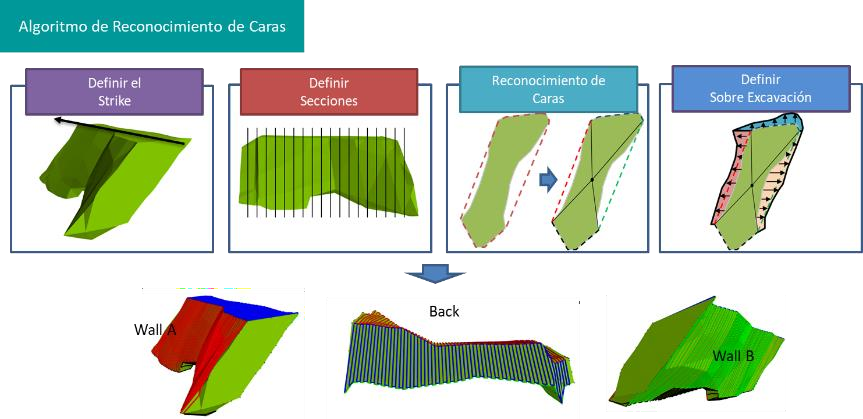

Over-Excavation Calculation
MineRoc incorporates automated algorithms to define over-excavation for each of the walls.
